Time Delay (TD+ TD-) instructions

Document Details



Article ID
GA600-1200

Last Review
April, 18th 2007

Products
AX360

Related Articles
GA600-1000


The Time Delay feature of the AX360 allows you to delay playack of audio to the front and center channels.

We are going to go over adjusting the TD settings on the AX360 audio controller. Start out by making sure the toggle switch next to the AC Adaptor is to the left, as indicated below:

TD Switch Image

Once the switch is set to "TD/DRC" you can then push the "TD+" and "TD-" buttons to adjust the time delay. You can adjust the amount of delay on sound outputted from either the Center channel or Surround channels. You select the channel you want to adjust by changing the other toggle switch

SUR - This adjust the amount of delay inserted before a sound comes out of the surround channels (rear channels).

CTR - This adjust the amount of delay inserted before a sound comes out of the center channels (rear channels).

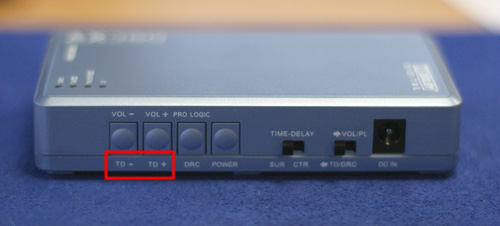

Plus and Minus photo

You can adjust the time delay up to + - 15ms delay between the front and rear channels, the end result is additional spatial seperation in the surround sound. The amount of delay used is up to you, and is largely a matter of personal preference.
